Transportation scheme for SR repair line

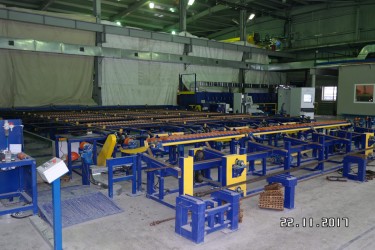

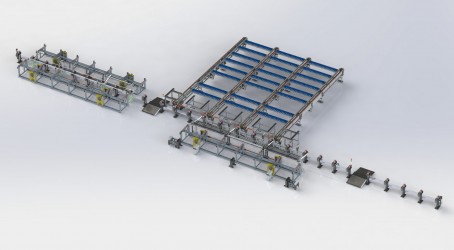

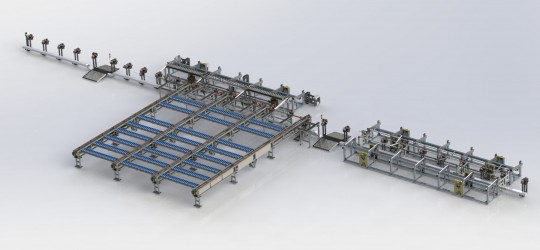

Transportation scheme is a line that connects equipment set for diagnostic and repair of used SR with complete process cycle.

Functions of transportation scheme:

Collection, storage, display and transfer of statistical information concerning SR status on line;

  • SR movement between operations on technological line according to statistic information for this rod;
  • Control of automatic mode, detection and diagnostic of equipment errors.
  • Control system is based on industrial programmable login controller and can be connected to the upper level of process control system.

Transportation scheme control is performed with operator panels installed on work positions. Panels are equipped with control elements and emergency stops. Main panel allows to control line in manual mode. Besides buttons and switches it is equipped with touch screen. Desk interface in work window reflects technological information necessary for SR repair. Panel number and instrumentation depend on equipment installed in SR repair area.
