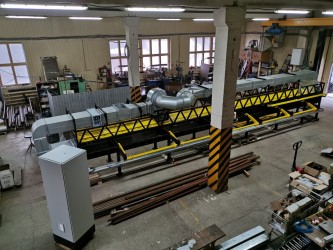

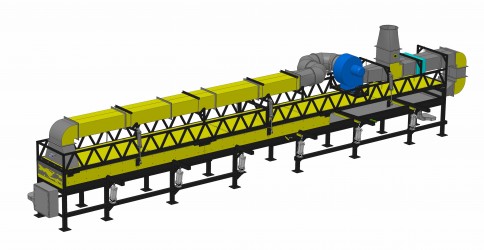

PCP drying plant
Drying unit is intended to remove water from outer and inner sides of pipes. Pipes are dried after washing and hydraulic testing. After hydraulic testing pipes are delivered to outdoor shelving unit. In sub-zero temperatures PCP surface covers with aufeis.
Pipe is delivered to drying room after the water is drained from inner surface by arm-type pick-and-place mechanisms with drive from pneumatic system.
Working temperature of drying room is 70-80°C, with possibility of automatic temperature regulation. Forced hot air guarantees pipe drying. Drying room can contain 10 pipes with diameter of 73.
Air-interchange system is of closed cycle with possibility to evacuate air outside the industrial shop.
