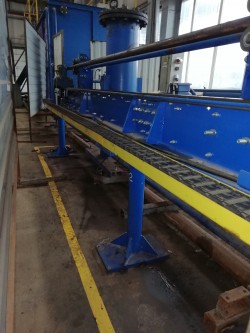

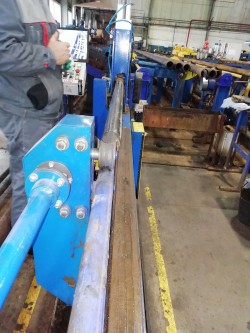

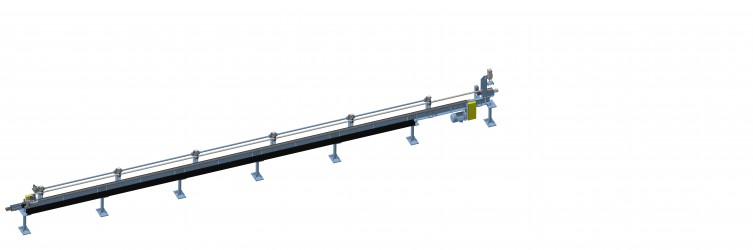

PCP drifting beam type machine
PCP drifting machine is intended to control internal drift diameter and common curvature of all PCP sizes.
Pipe drift is manufactured in accordance with GOST and is delivered into the pipe using a hard roll- guided rod. If the drift is seized inside the pipe, an indicator of excess of pushing power is activated, computer memorizes the length where the drift has seized, a back run of rod feeding assembly activates and the drift returns to initial position. If the pipe is fit, the drift passes through all the pipe length and returns back.
For drifting operation are allowed pipes after washing, sorting by external diameter and wall thickness and measured by length.
