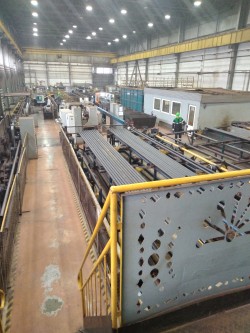

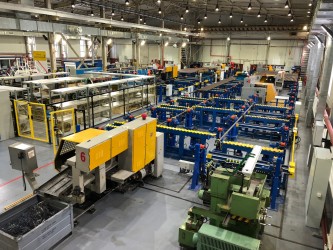

Transportation scheme for PCP repair line
Transportation scheme is a line that connects equipment set for diagnostic and repair of used and new PCP with complete process cycle.
Functions of transportation scheme:
- PCP movement between operations on technological line according to statistic information for this PCP;
- Collection, storage, display and transfer of statistical information concerning PCP status on line;
- Control of automatic mode, detection and diagnostic of equipment errors.
Control system is based on industrial programmable login controller and can be connected to the upper level of process control system.
Transportation scheme control is performed with operator panels installed on work positions. Panels include operating controls for manual control, operating mode selectors and safety cutoff for emergency stop. Some panels have touch screens. Desk interface in work window reflects technological information necessary for PCP repair. Panel number and instrumentation depend on equipment installed in PCP repair area.
