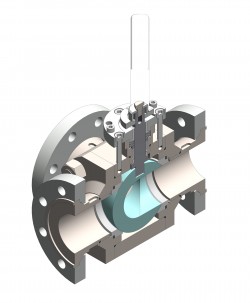

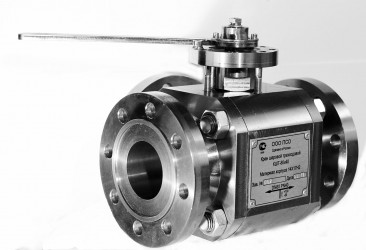

Three-way ball valve

The valve is intended to distribute service fluid flow in pipe line or its separation on two directions. Valve ball starts rotating around shaft axis manually by handle or in the remote mode by drive, depending on packaging.

Send message
Description

TECHNICAL PECULIARITIES

  1. Valve body is turned, from rolled products.
  2. Valve body material is stainless steel.
  3. Shaft has shevron pack seal with automatic adjustment.
  4. Valve is provided with protection against shaft outbreak.
  5. Wear compensation of ball seal is provided.
  6. Ball seal is changeable.
  7. Drivev seating is in accordance with DIN ISO 5211, GOST Р 55510-2013


TECHNICAL SPECIFICATIONS

Operating environment

oil-water-gas mixture

Temperature of operating environment, °С

from -60 to +130

Atmospheric temperature, °С

from -60 to +40

Rated pressure PN, MPa

4

Nominal diameter DN, mm

80 (100)

Connecting dimensions of drive according to GOST Р 55510-2003

F10

Connecting dimensions of shaft, mm

square 22

Structural length according to GOST 3326-86, mm

310/155 (350/175)

Union flange version according to GOST 33259-2015

F

Body and air-gas channel material

stainless steel

Ball material

stainless steel

Seal material in movable couplings

fluoroplastic and its modifications

Seals in fixed joint

rubber joints

Shutoff class according to GOST Р 54808-2011

А
